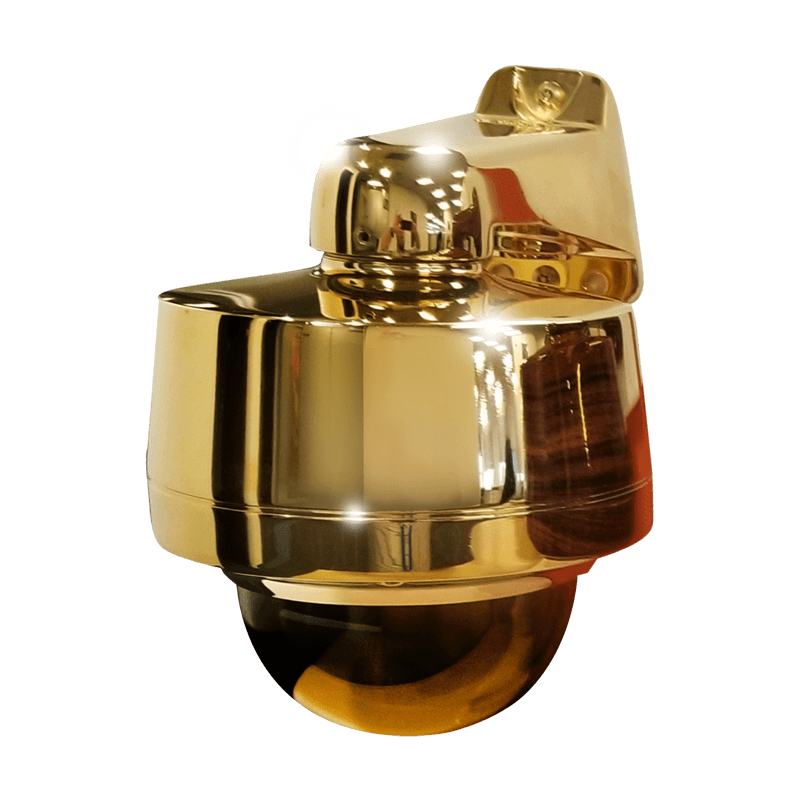

pelco-gold-dome

Special Modification Requests

Pelco knows each installation and each customer brings its own unique set of requirements that may demand customized solutions. Our Special Modification Requests (SMR) program is designed to meet such needs. Whether the customization need is driven by aesthetics or environment, our SMR program allows integrators and dealers to deliver powerful, differentiated solutions to customers.

TypeSmr NumberTitleContentInformationSmr NotesSkusmr_category_hfiltersmr_type_hfilter
SMR VideoXpert Plates Server
2-004064SMR VideoXpert Plates ServerSMR VideoXpert Plates Server is the hardware that is needed to run the Professional LPR version. VideoXpert Plates APLR and Manager running on the same server. The specification sheet offers an example of the SMR server specification and the number of cameras that can be managed with the same server running both the VideoXpert Plates APLR and Manager software.

Based on VideoXpert Rackmount Workstation upgraded to Intel® Core i9-9900K, 64GB of total memory, 4TB of raw storage, Windows 10 IOT 2019. Licenses are sold separately.

SM-VXPL9-4064systemsprofessional-lpr videoxpert-professional
Fortified Housing High Temperature
2-003432Fortified Housing High Temperature

Integrated Camera System with an active onboard air conditioning system.

IP66 with active cooling technology and is dust- and water-tight. The enclosures house one of several camera options. The Fortified Housing Series is ideal for installations in high temperature environments. Pelco IP camera systems can be configured with an optional fiber optic media converter. The fiber media converter uses FSFP technology to give the installer the choice of many fiber media formats from single mode to multimode.

Protects the camera and other system-related electronics from heat buildup on sensitive components.

See specification sheetenclosures fixed-camerafortified-housings
Anodizing Aluminum Cameras & Mounts
2-003271Anodizing Aluminum Cameras & Mounts

A method to slow down the corrosion in harsh environments is to anodize the raw aluminum camera enclosures and mounts.

The SMR program can offer the anodizing process to many of our products, with some exceptions.

For challenging marine or corrosive installations, the environmental conditions will be a catalysis for the corrosion process. For example, mounting an aluminum camera in the presence of marine air will create corrosion on the aluminum camera.

Inquire with the SMR Departmentall-cameras mountscorrosive-resistance
Extended EH20 Enclosure Wall Mount Arm
2-004215Extended EH20 Enclosure Wall Mount Arm

SM-EC20-4215 is a wall mount arm that is extended 14 inches (36 cm)

Compatible with all standard mount accessories for the EH20 enclosure

For applications that require a longer length mount arm.

SM-EC20-4215enclosures mountsmount
Faux Stainless Finish IWP Wedge Camera
2-004202Faux Stainless Finish IWP Wedge Camera

Brushed nickel finish (faux stainless) to the Sarix IWP wedge camera.

This camera is a great fit for elevators with stainless interiors.

This finish is for indoor applications only; the finish will deteriorate if exposed to wet environments.

SM-IWP233-4202fixed-camerafinish
Faux Stainless Finish IBD Corner Camera
2-004144Faux Stainless Finish IBD Corner Camera

Brushed nickel finish (faux stainless) to the Sarix IBD corner camera.

This camera is a great fit for elevators with stainless interiors.

This finish is for indoor applications only; the finish will deteriorate if exposed to wet environments.

SM-IBD1291-4116, SM-IBD3291-4116fixed-camerafinish
EH20 Housing Media Converter Mount
2-003954EH20 Housing Media Converter Mount

As customers are upgrading their cameras from analog to IP or have requirements for fiber transmission. Pelco’s media converter can be mounted inside the EH20 series of enclosures.

Part number SM-EH20MBR-3954 is a bracket kit that will allow the media converter to mount to the top of the Pelco box camera.

This solution is ideally suited for applications where the existing coax cable can be leveraged for transmission of IP signals, or where fiber transmission is required. Ordered separately is the Enclosure, Camera & Lens, and Media Converter.

SM-EH20MBR-3954enclosuresmedia-converter
High Security Low Profile Ceiling Mount
HS2100High Security Low Profile Ceiling Mount

The HS2100 is a low-profile ceiling enclosure designed for use with box cameras. The unobtrusive, compact design complements any business or office decor and provides maximum surveillance for fixed camera applications.

"Because of the lightweight design, the enclosure can be mounted directly on a ceiling tile without the use of an additional mounting plate. The HS2100 is engineered for ease of installation and service. The lower section is hinged to provide convenient access for camera and lens adjustments. The adjustable camera mount allows the camera to be positioned vertically or horizontally, depending on the camera size. A tamper-resistant screw secures the enclosure cover. "

The enclosure is designed for use in fixed or dropped (false) ceilings. The upper section mounted above the ceiling is constructed from aluminum; the lower section is constructed from steel to provide maximum protection and durability.

HS2100enclosureshigh-security
High Security, Indoor, Corner Mount
HS1501High Security, Indoor, Corner Mount

The HS1501 high-security enclosure is designed for applications such as elevators, parking garages, classrooms, detention cells, etc., requiring maximum protection from vandalism.

The HS1501 is constructed of heavy gauge steel and will accept most cameras with fixed focal length and varifocal lenses.

Designed to fit flush to the ceiling in a corner, the enclosure includes an impact-resistant clear Lexan® window as a standard feature.

HS1501enclosureshigh-security
High Security, Indoor, Ceiling Mount
HS8134High Security, Indoor, Ceiling Mount

The HS8134 is a high-security ceiling mount enclosure designed for applications requiring maximum protection from vandalism.

The HS8134 features a hinged lower cover that swings down to allow easy access to the camera and lens. The removable camera mount can be easily positioned for various viewing angles, and conduit knockouts allow cabling to be delivered from the wall (either side) or ceiling.

The HS8134 is also ideal for use in outdoor applications such as parking garages or other applications offering protection from environmental elements.

HS8134enclosureshigh-security
Parapet Mount for Pendant Domes
SP02-025Parapet Mount for Pendant Domes

The SP02-025 and SP02-025-SW is a parapet mount for pendant domes that use 1.5-inch NPT pipe, including Spectra®, Sarix Series. It has adjustable sides that can be opened to mount the base to one side of a parapet wall. The adjustable sides can be configured inward to install the base in a corner. The mount arm has a handle on it for sliding the arm in and out from the edge of the roof to make installation and servicing of the pendant dome easy.

Finish

SP02-025            Pelco Light Gray polyester powder coat

SP02-025-SW   Pelco White RAL 9003 polyester powder coat

SP02-025, SP02-025-SWmountspendant
Aluminum wall mount arm with an integrated weatherproof transformer.
2-002213Aluminum wall mount arm with an integrated weatherproof transformer.

Designed for use with Spectra dome series. 120 VAC input, 24 VAC output. Capacity to install a Pelco media converter inside the mount arm. Not included is the media converter.

Aluminum Painted Pelco Light Gray or Pelco White RAL 9003

Finish

SM-IWMGY-28FZP9   Pelco Light Gray

SM-IWMSW-28FZP9  Pelco White RAL 9003

SM-IWMGY-28FZP9, SM-IWMSW-28FZP9mountsmedia-converter mount pendant
Dome Mount
SP01-001Dome Mount

The SP01-001 and SP01-001-SW mount is designed for outside use with small size pendant domes.

The mount attaches to rooftops or smooth horizontal surfaces and can accommodate domes that use 1.5-inch (3.81 cm) NPT pipe. The mount features a flange with a hole pattern that matches the British standard of 4.0 inches (10.16 cm) PCD (pitch circle diameter). The SP01-001 allows cable to be fed through the center of the tube to conceal wiring.

Finish:

SP01-001             Pelco Light Gray epoxy powder coat.

SP01-001-SW    Pelco White RAL 9003 epoxy powder coat.

SP01-001, SP01-001-SWmountspendant
Adapter Plate For WMVE
2-004200Adapter Plate For WMVE

Electrical box adapter plate for WMVE-SR or WMVE-SW. Compatible with 4S, double and single gang electrical boxes.

Painted Pelco Telegray RAL 7047 or Pelco White RAL 9003SM-WMVEPSR-4200, SM-WMVEPSW-4200mountsadapter-plate
Triple Retrofit Arm For PP Mounts
2-002092Triple Retrofit Arm For PP Mounts

The existing PP450/PP451 parapet/rooftop mount can be retrofit to a triple arm.

Applications such as ports or corrections that require the simultaneous viewing of multiple zones can utilize this mount. A popular use is for one PTZ and one panoramic camera for operational awareness. Also, this mount is a great solution for enabling Camera Link technology.SM-TRLB-2BTOT0mountspendant
Double Retrofit Arm For PP Mounts
2-002480Double Retrofit Arm For PP Mounts

The existing PPx50/PPx51 parapet/rooftop mount can be retrofit to a double arm. Also, this mount can be used with IWM mount arms.

Applications such as ports or corrections that require the simultaneous viewing of multiple zones can utilize this mount. A popular use is for one PTZ and one panoramic camera for operational awareness. Also, this mount is a great solution for enabling Camera Link technology. Painted Pelco Light Gray or Pelco White RAL 9003SM-DBLB-41H8S, SM-DBLB-SW-2480mountspendant
Dual Camera Mount on a PP450
2-002979Dual Camera Mount on a PP450

SM-PP450-N9LN is a modified PP450 that includes a second nipple. This will allow for two pendant-style cameras to be mounted on one arm.

Applications such as ports or corrections that require the simultaneous viewing of multiple zones can utilize this mount. A popular use is for one PTZ and one panoramic camera for operational awareness. Also, this mount is a great solution for enabling Camera Link technology.SM-PP450-N9LNmountspendant
Heavy-Duty Mount for the Enclosure EH20
2-003967Heavy-Duty Mount for the Enclosure EH20

Some applications require a more robust mount for the EH20 enclosure; we can now offer an alternative heavy-duty EM20 mount.

This design will withstand forces from wind and other vibrations better than the standard EM20 mount. The mount will work with all versions of EH20, and we also offer special versions of the pole adapters and junction box that are compatible with this heavy-duty mount.SM-EM20HD-3967, SM-EP21-3967, SM-EP20-3967, SM-EM20JB-3967, SM-EH20M-3967, SM-EH202H-3967, SM-EH203H-3967, SM-EM20PH-3967enclosuresmount
Ceiling mount Reinforcement Rails
SCA1Ceiling mount Reinforcement Rails

Use in suspended ceiling applications where additional support for Spectra series domes is needed due to weakness or instability of existing ceiling.

The SCA1 is a five-piece structural ceiling adapter for use with Spectra Series domes. The SCA1 ceiling adapter kit has two L-shaped, 26-inch (66 cm) support rails with slots in each end for mounting Spectra domes in suspended ceilings or for additional support in hard ceilings.SCA1mountsmount
Ceiling Panel
SD5-PCeiling Panel

2-foot x 2-foot ceiling panel for use in Spectra dome suspended ceiling applications.

Painted Pelco WhiteSD5-Pptzmount
Anti-Vibration For Spectra Series Stainless and Pressurized Environmental Pendant Dome Systems
SP01-003Anti-Vibration For Spectra Series Stainless and Pressurized Environmental Pendant Dome Systems

The Spectra Series anti-vibration mount adapter is designed for extreme vibration applications where external sources (for example, roof mount A/C unit, heavy equipment, or large compressor) interfere with the video of the dome system. The mount adapter reduces external vibrations by isolating the Spectra Series dome system from the source of the vibration. The anti-vibration mount was designed for the analog Spectra series but has been used with the newest IP version of Spectra.

The mount adapter mounts between the Spectra Series backbox and any Spectra Series mount with 1.5-inch NPT threads.SP01-003mountsanti-vibration
Anti-Vibration For Spectra Series Standard and Environmental Pendant Dome Systems
SP01-002Anti-Vibration For Spectra Series Standard and Environmental Pendant Dome Systems

The Spectra Series anti-vibration mount adapter is designed for extreme vibration applications where external sources (for example, roof mount A/C unit, heavy equipment, or large compressor) interfere with the video of the dome system. The mount adapter reduces external vibrations by isolating the Spectra Series dome system from the source of the vibration. The anti-vibration mount was designed for the analog Spectra series but has been used with the newest IP version of Spectra.

The mount adapter mounts between the Spectra Series backbox and any Spectra Series mount with 1.5-inch NPT threads.SP01-002mountsanti-vibration
Integrator Friendly Camera Packaging
2-004092Integrator Friendly Camera Packaging

Any Pelco camera can be pre IP cabled in the factory.

The cable can be accessed from just inside the box. Labor efficiency is very important to integrators; it could be the difference between making a profit or not.Please send an inquiry to the SMR Departmentall-camerasip-cabling
EH20 Traffic Pole Mount
2-003593EH20 Traffic Pole Mount

Mounting an EH20 housing to horizontal traffic poles can be accomplished with this SMR solution. Sold separately is the standard EH20 enclosure.

Articulating the housing into various angles for the most difficult traffic arm mounting challenges can be accomplished by replacing the EM20 mount with this SMR product. The mount comes with three stainless steel pole straps, and we have another SMR offer that provides two U-Bolts instead of the straps.SM-EM20-3593enclosuresmount
Esprit Pedestal Mount
2-001378Esprit Pedestal Mount

This mount is great for installing media converters, or a fiber module, and a fiber loop.

This mount provides access space for cable strain relief and termination. The mount includes a cable clamp and J hook to make cable management and camera installation easier. Needed but not included is the EPP2. Painted Pelco Light Gray to match the EspritSM-PM2010-1378ptzmount
IP Camera, Custom Addressing and Configuration, Value Added Service
2-001980IP Camera, Custom Addressing and Configuration, Value Added Service

Any model of the Pelco IP Camera can be pre-addressed and configured in the factory.

Addressing includes NIC address, subnet mask; gateway can be addressed uniquely for each camera purchased. Also, other settings like displaying the date, time, and camera name can be turned off. Preinstalled security certificates, image rate, resolution, and compression can be set per the customer’s requirements. Labeling each camera and shipping box is an additional feature with the camera name and unique information supplied by the customer. This value-add service is a huge installation time saver.Please send an inquiry to the SMR Departmentall-camerasip-config
Marine Kit for Esprit Series Positioning System
ES-MKITMarine Kit for Esprit Series Positioning System

Marine kits are the solution to slow down the corrosion that will attack the aluminum camera.

Marine kit that is designed for the Esprit mount EWM.ES-MKITmountscorrosive-resistance
Equipment Rack For POE Switch
2-004172Equipment Rack For POE Switch

1U rack shelf that can hold up to two POE430-ATUS or POE430-ATEU (POE not included).

Included in this product are a rack and mounting hardware for the rack ears and two POE devices (POE not included).SM-POE4RMA-4172accessoriesmount
Pendant Swivel Mount Conduit Junction Box
2-003398Pendant Swivel Mount Conduit Junction Box

Pendant swivel mount conduit junction box for Spectra and any pendant domes. Use in pendant mount applications when the conduit is being used for electrical connections.

Painted Pelco Light Gray or Pelco White RAL 9003SM-BB5PCAS-3398, SM-BB7PCAS-3398mountsjunction-boxes
Pendant Mount Conduit Junction Box
2-003991Pendant Mount Conduit Junction Box

Pendant mount conduit junction box for Spectra and any pendant domes. Use in pendant mount applications when the conduit is being used for electrical connections.

Painted Pelco Light Gray or Pelco White RAL 9003SM-BB5PCA-3991, SM-BB7PCA-3991mountsjunction-boxes
2-004005 Enclosure Lamp Pelco
2-004005EHS8000 Series Enclosure with IR or White Light Lamps

SMR 2-004005 is a modification to the EHS8000 series enclosures that provide the capability to mount IR or white lamps to the enclosure.

This solution can utilize any size lamp.SM-EHS802H-4005, SM-EHS803H-4005, SM-EHS80PH-4005enclosures mountslamps
pelco telescoping pole extension
99-321Telescoping pole mount

The SP99-321 is an adjustable pole mount for pendant domes that use 1.5-inch NPT pipe, including Spectra Series domes.

Painted Pelco light gray or White RAL 9003.

The pole mount is designed for high-ceiling installations and can be adjusted to lengths between 4 and 8 feet (1.2 to 2.4 m). It includes an MRCA and built-in safety features that prevent separation of the sleeves.

Features:

  • Aluminum construction
  • Charcoal gray polyester powder coat
  • Adjustable between 4 and 8 feet
  • Built-in safety features
  • 1.5-inch NPT threads
  • Mounts to MRCA
SP99-321, SP99-321-SWmountspendant
Pendant Mount Pipe Extension, Length 1 Meter
01-146BPendant Mount Pipe Extension, Length 1 Meter

1.5 inch NPT extension, 1 Meter.

Painted Pelco light gray or White RAL 9003.SP01-146B, SP01-146B-SWmountspendant
Pendant Mount Pipe Extension, Length 300mm.
01-146APendant Mount Pipe Extension, Length 300mm.

1.5 inch NPT extension, 300mm.

Painted Pelco light gray or White RAL 9003.SP01-146A, SP01-146A-SWmountspendant
em20 lamp mount arm pelco
2-003627EM20 Lamp Mounting

Modified EM20 and hardware needed to mount a Pelco lamp to the arm. Any size Pelco lamp can be mounted

Sold separately is the standard EH20 enclosure and lamp. The cable entry is through a hole in the EM20 arm.SM-EM20-3627enclosures mountslamps
Pole Adapter PA402 Stainless Steel
2-002115Pole Adapter PA402 Stainless Steel

Pole adapter that is compatible with IDM4012SS-SW, IDM4012SS, SM-IWM24SW-2111, SM-IWM24GY-2111

High-grade 316L stainless steel for corrosive and marine environments.

SM-PA402-2115         Painted Pelco Light Gray

SM-PA402SW-2115  Painted Pelco White RAL 9003

SM-PA402SW-2115, SM-PA402-2115mountscorrosive-resistance stainless
Stainless steel wall mount arm with an integrated weatherproof transformer
2-002111Stainless steel wall mount arm with an integrated weatherproof transformer

Designed for use with Spectra dome series. 120 VAC input, 24 VAC output. Capacity to install a Pelco media converter inside the mount arm. Not included is the media converter.

High-grade 316L stainless steel for corrosive and marine environments.

Finish:

SM-IWM24GY-2111  Pelco Light Gray

SM-IWM24SW-2111  Pelco White RAL 9003



SM-IWM24GY-2111, SM-IWM24SW-2111mountscorrosive-resistance media-converter mount pendant stainless
Marine Kit for Spectra Wall Mounts
IWM-MKITMarine Kit for Spectra Wall Mounts

Marine kits are the solution to slow down the corrosion that will attack the aluminum camera.

Marine kit designed for IWM, IDM4012SS arms.IWM-MKITmountscorrosive-resistance
Wall Mount Arm Stainless Steel
2-000000Wall Mount Arm Stainless Steel

For use with Spectra Series domes. Can also be used with other 1.5 NPT pendant domes.

Constructed of type 304 stainless steel for corrosive and marine environments. Painted Pelco White RAL 9003 or Pelco Light GrayIDM4012SS, IDM4012SS-SWmountscorrosive-resistance stainless
Spectra Enhanced Stainless Steel
2-004152Spectra Enhanced Stainless Steel

Spectra Enhanced series 7 1080p 30x enclosed in a stainless backbox and lower dome.

The backbox and lower dome are high grade 316L stainless steel for corrosive and marine environments. The backbox is painted Pelco White RAL 9003 and the lower dome is painted Pelco Charcoal Black. Country of origin is the United States.SM-S723US0-4152, SM-S723US1-4152ptzcorrosive-resistance stainless
IWP-wedge-camera-adaper-plate-2-004167
2-004167IWP Wedge Camera Adapter Plate

Attractive electrical box adapter plate for the IWP wedge series of cameras. Completely conceals the cable entry hole.

Can adapt to various electrical box standards, 4S, double and single gang. Painted RAL 9003 to match the IWP cameraSM-IWPPLT-4167fixed-cameraadapter-plate
pelco vx pro power series product
2-004163VideoXpert Pro With High Storage Capacity

VXP-P2 storage boxes with larger capacity

Four different sizes are available 120TB, 144TB, 160TB, 192TB

There is a municipal code that requires video surveillance retention for 1-year (365 Days). This code applies to City and State entities, i.e., Cities, Jails, PD, Water Districts, Libraries, and the list goes on. The struggle is that with such long retent rates, the storage maxed out very quickly, “even with utilizing compression methods.” In this marketplace, we needed to have a competitive single box solution vs. the competition instead of having to place (2) VXP-P2 boxes into a customer’s rack. The task was to come up with a single-box solution with much more storage capacity without having to switch to the VXE system with lower camera counts.

SM-VXP1205-4163, SM-VXP1445-4163,SM-VXP1605-4163, SM-VXP1925-4163systemsvideoxpert-professional
Pressurized Stainless Spectra 6
2-002332Pressurized Stainless Spectra 6

Spectra Six Pressurized

Meets NEMA Type 6P and IP67 requirements when installed properly. The country of origin is the United States. Painted Pelco Light Gray. Supplied with a pre-wired cable with a mating connector. The cable includes all wires for system functionality

Painted Pelco Light Gray. Supplied with a pre-wired cable with a mating connector. The cable includes all wires for system functionality

SM-B6PR0-2P888R, SM-B6PR1-2P888Rptzcorrosive-resistance pressurized-cameras stainless
Stainless Sarix Gen 3 and Optera in a Spectra Housing
2-004160Stainless Sarix Gen 3 and Optera in a Spectra Housing

Sarix Pro, Enhanced, or Optera camera mounted in a stainless 316L Spectra backbox.

Meets NEMA Type 4X and IP66 requirements. Country of origin is the United States for Enhanced versions.

Painted Pelco Light Gray and the lower dome is painted Pelco Charcoal Black

SM-IMP231R-4160, SM-IMP531R-4160, SM-IME32US-4160, SM-IME38US-4160, SM-IMM18US-4160, SM-IMM27US-4160, SM-IMM36US-4160fixed-cameracorrosive-resistance stainless
Sarix Enhanced Tamper Proof In-Ceiling Mount
2-004146Sarix Enhanced Tamper Proof In-Ceiling Mount

In-ceiling mounts for Sarix domes do not have a feature to lock the beauty ring in place. This limitation causes issues with installations at hospitals and public areas were gaining access to the camera is a concern.

8-32 x 3/8" SS Torx tamper-proof painted screw heads to match the ring. Color Pelco RAL 9003. Two tamper-proof screws in the trim ring. New version IME3ICM-E mount. To prevent the ring from being removed.

Color Pelco RAL 9003. Two tamper-proof screws in the trim ring. New version IME3ICM-E mount. To prevent the ring from being removed.

SM-IME3ICM-4146mountssarix
Demo Stand Tabletop
2-004078Demo Stand Tabletop

Pendant camera demonstration mount 38.0″ tall. The mount is composed of four pieces to make it easier to transport.

The height can be adjusted from 18" to 38" by using 10" extensions. Painted Pelco RAL 9003. Optional accessories: additional 10" extension. Double pendant mount

Painted Pelco RAL 9003. Optional accessories: additional 10″ extension. Double pendant mount

SM-SP00007-4078mountsdemo-stands

Custom Requirements Built to Order

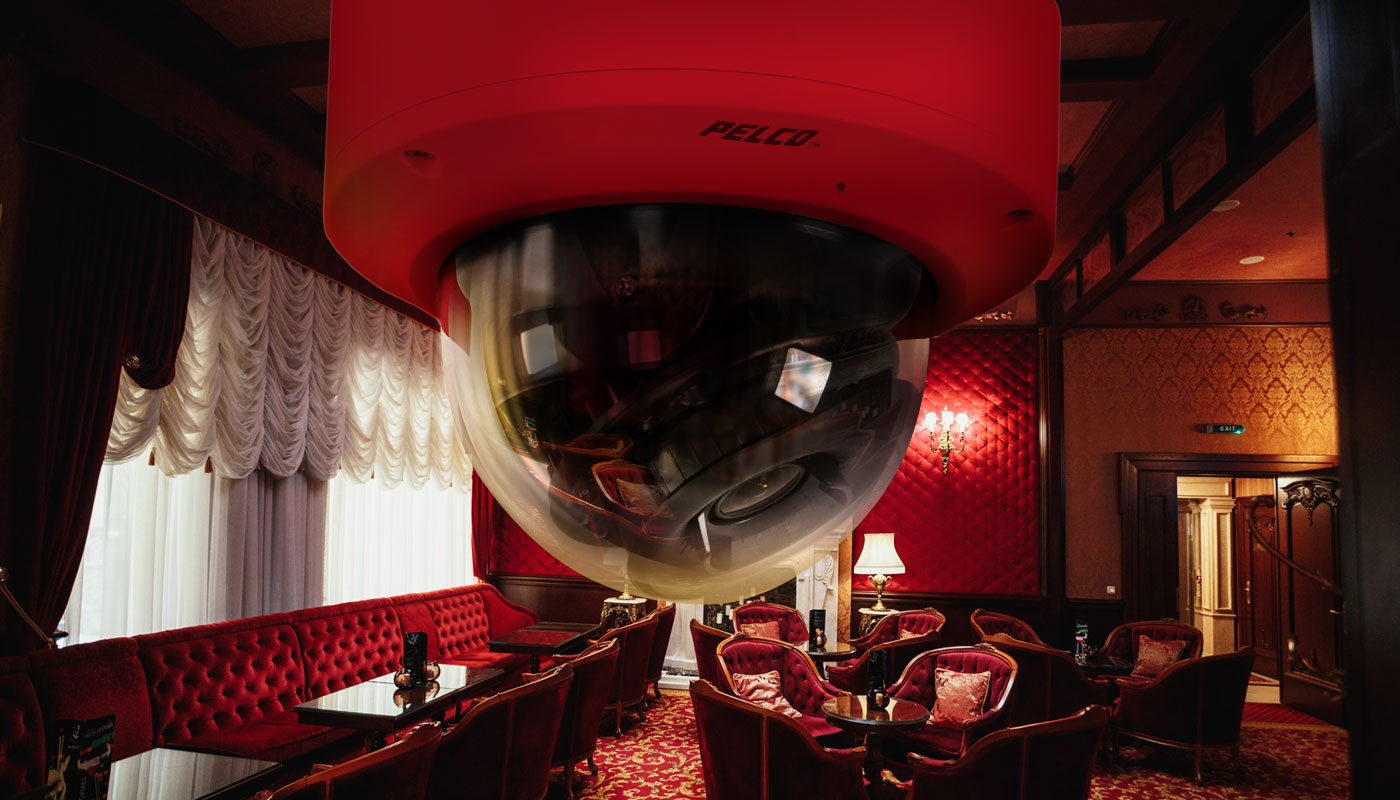

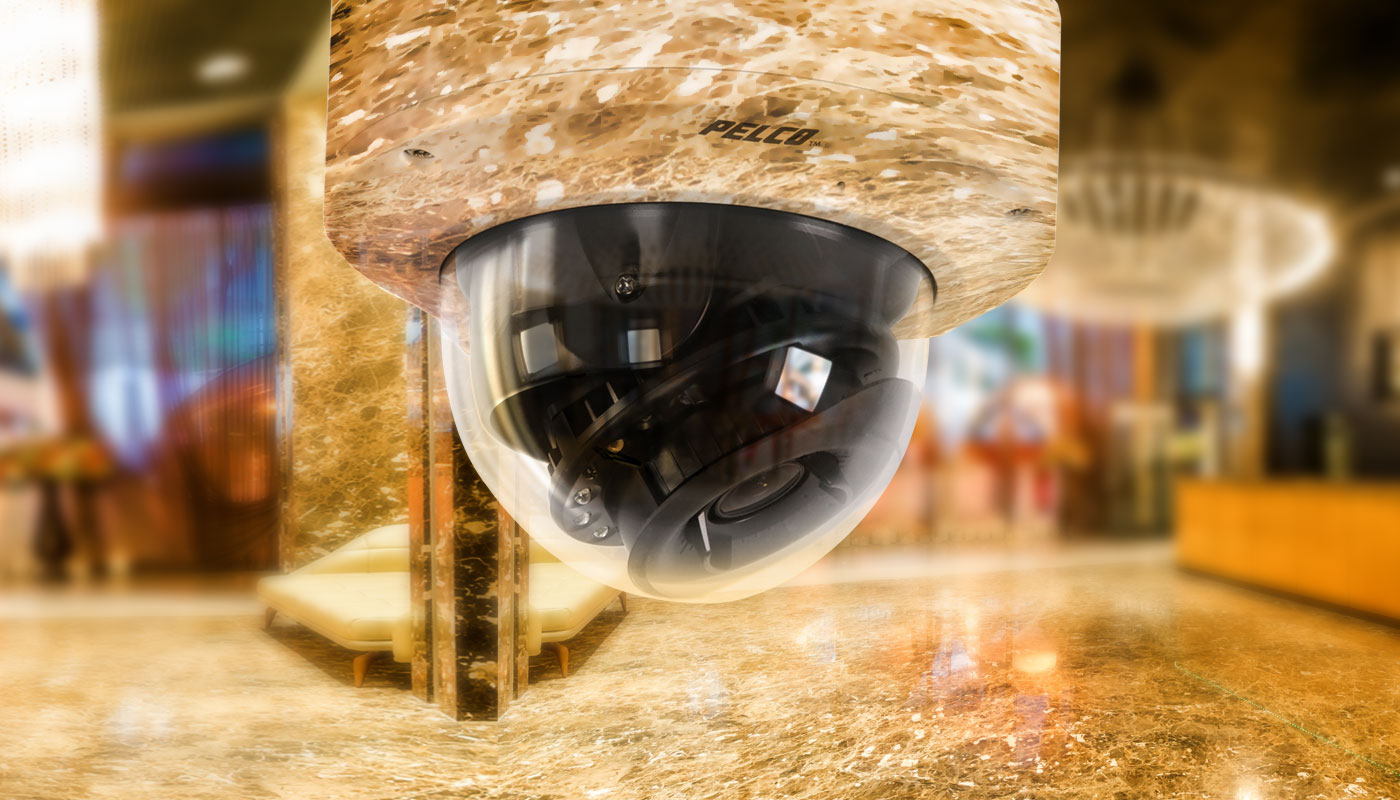

pelco resort pattern match camera shot pelco hotel pattern match camera shot

Interested in Updates?

Please complete the form below and select what updates you wish to receive.


Click here to update all Email Preferences

Let's Start the Conversation

Contact us today for video surveillance solutions that keep your facilities, properties, and people safe.
