Spectra Professional

Spectra Professional

High Definition IP Dome Positioning System

Cost effective high definition IP dome positioning system covering your everyday security needs.

Spectra Pro - Clear Dome (1)

OVERVIEW

Spectra Pro Series

Spectra Professional is an ideal, cost-effective solution for common applications. The dome system features open architecture connectivity for third-party software recording solutions allowing integration into virtually any IP-based HD system. The Spectra Pro Series is easy to order, easy to install and ready to get you focused on what matters most in your organization.

Applicable & Reliable

Pelco’s Spectra Professional Dome Cameras are ideally suited for commerical, corrections, city surveillance, medical,and campuses.  Pelco is a trusted partner where reliability and robustness are crucial to protect people and assets.

Deliver Clear Footage

Security personnel need a surveillance solution that covers a large area and at the same time have zoom-in capability to provides detailed and clear information for high-quality forensic gathering in the event of an accident or criminal activity. The Spectra Pro series covers the entire scene with 360° continuous pan rotation and provide the required information with 2MP and 20x optical zoom.

Automate Every Day Tasks with Edge Analytics

Pelco video Analytics enhance the flexibility and performance of Spectra Professional. Two preloaded Pelco behaviors are included as standard features and can be configured and enabled using a standard Web browser.

  • Motion Detection: Built-in video motion detection (VMD) provides more efficient and reliable surveillance by triggering an alarm when motion occurs based on the user-defined area and sensitivity levels.
  • Camera Sabotage: Detects contrast changes in the field of view. An alarm is triggered if the lens is obstructed by spray paint, a cloth, or a lens cap. Any unauthorized repositioning of the camera also triggers an alarm.
  • Product Information

    P1220

    Spectra® Professional Series IP Dome System

    P1220 Models, High Definition Pan/Tilt/Zoom High-Speed Dome

    Details
    • Up to 1920 x 1080 Resolution
    • 16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
    • 2.0 Megapixel (MPx), 20X Optical Zoom, 12X Digital Zoom IP Camera
    • Ability to Control and Monitor Video Over IPv4 Network
    • Built-in Analytics Including Motion Detection and Camera Sabotage
    • 2 Video Streams: Dual H.264 or H.264 and Scalable MJPEG
    • 360° Continuous Pan Rotation up to 430° per Second
    • Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,
      DNS, DHCP, RTP, RTSP, NTP, and More
    • PoE+ IEEE 802.3at Class 4 (For Non-Environmental Units)
    • 16 Preset Tours, 128 Dome Presets, 8 Window Blanks
    • Open IP Standards
    • ONVIF Profile S and Profile G Conformant
    • 940 nm IR (no glow)

    Model Types

    pelco spectra pro indoor in ceiling dome

    In-Ceiling Indoor

    P1220-FWH0 | P1220-FWH1

    • Single Back Box for Suspended or Hard Ceiling Applications
    • Requires 14.01 cm (5.51 in.) Space Above Ceiling
    • Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 3.81 cm (1.5 in.)
    • Aluminum, Stainless Steel, and PC-ABS Construction
    • Suitable for Use in Environmental Air Handling (Plenum) Spaces
    • White Finish, RAL 9003
    • Available with Clear or Smoked Dome
    pelco spectra pro indoor in ceiling dome 2

    In-Ceiling Environmental

    P1220-YSR0 | P1220-YSR01

    • Single Back Box for Suspended or Hard Ceiling Applications
    • Requires 14.01 cm (5.51 in.) Space Above Ceiling
    • Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 3.81 cm (1.5 in.)
    • Includes Heater and Fan
    • Aluminum and Stainless Steel Construction
    • Suitable for Use in Environmental Air Handling (Plenum) Spaces
    • IK10 (20J) Impact Resistance
    • Light Gray Finish, RAL 7047
    • Available with Clear or Smoked Dome
    spectra-pro-environment-in-ceiling-450x4501

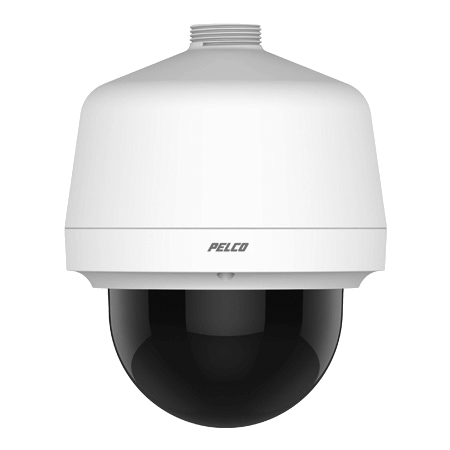

    Pendant Indoor

    P1220-PWH0 | P1220-PWH1

    • Aluminum Construction
    • 1.5-inch NPT (Male) Mounting Thread
    • White Finish, RAL 9003
    • Available with Clear or Smoked Dome
    spectra-pro-indoor-pendent-450x4501

    Pendant Environmental

    P1220-ESR0 | P1220-ESR1

    • Aluminum Construction
    • Includes Heater and Fan
    • 1.5-inch NPT (Male) Mounting Thread
    • IK10 (20J) Impact Resistance
    • Light Gray Finish, RAL 7047
    • Available with Clear or Smoked Dome

    Technical Documents & Spec Sheets

    TypeDateTitleVer #Doc. TypeProduct CategoryTagsLanguageLinkdoc_language_hfilterdoc_type_category_hfilter
    Spectra Professional -- Firmware Release Notes v5.10.52
    May 1, 2020Spectra Professional — Firmware Release Notes v5.10.52v5.10.52, , , , media.pelco.com/wp-content/uploads/2020/05/12191354/Spectra-Professional-Firmware-Release-Notes-v5.10.52.pdfenglishrelease-notes
    Spectra Professional Series IP Dome System Specification Sheet
    May 1, 2020Spectra Professional Series IP Dome System Specification Sheet, , media.pelco.com/wp-content/uploads/2020/05/EN_C4013_SpectraPro_r010816_rebrand-1.pdfenglishspecification-sheets
    Spectra Professional Series IP Dome System Quick Start Guide - English
    May 14, 2020Spectra Professional Series IP Dome System Quick Start Guide – English, , media.pelco.com/wp-content/uploads/2020/05/14225735/Spectra-Professional-Series-IP-Dome-System-Quick-Start-Guide-English.pdfenglishquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Chinese
    May 14, 2020Spectra Pro Series IP Dome System Quick Start Guide – Chinese, , media.pelco.com/wp-content/uploads/2020/05/12190853/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Chinese.pdfchinesequick-start-guides
    Spectra Professional Series IP Dome System User Manual - 11-14
    May 18, 2020Spectra Professional Series IP Dome System User Manual – 11-14, , media.pelco.com/wp-content/uploads/2020/05/12191723/Spectra-Professional-Series-IP-Dome-System-User-Manual.pdfenglishuser-manual
    Spectra Professional Series, Network Dome Positioning Camera A&E Specs
    May 19, 2020Spectra Professional Series, Network Dome Positioning Camera A&E Specs, , media.pelco.com/wp-content/uploads/2020/05/19184957/Dome_Spectra_Professional_Series_IP_Dome_System_AE_Specification.docenglishae-spec-sheets
    Spectra Pro Series IP Dome System Quick Start Guide - Arabic
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Arabic, , media.pelco.com/wp-content/uploads/2020/05/12190848/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Arabic.pdfarabicquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Chinese
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Chinese, , media.pelco.com/wp-content/uploads/2020/05/12190853/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Chinese.pdfchinesequick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - French
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – French, , media.pelco.com/wp-content/uploads/2020/05/12190857/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-French.pdffrenchquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - German
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – German, , media.pelco.com/wp-content/uploads/2020/05/12190901/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-German.pdfgermanquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Italian
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Italian, , media.pelco.com/wp-content/uploads/2020/05/12190906/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Italian.pdfitalianquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Portuguese
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Portuguese, , media.pelco.com/wp-content/uploads/2020/05/12190910/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Portuguese.pdfportuguesequick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Russian
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Russian, , media.pelco.com/wp-content/uploads/2020/05/12190915/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Russian.pdfrussianquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Spanish
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Spanish, , media.pelco.com/wp-content/uploads/2020/05/12190920/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Spanish.pdfspanishquick-start-guides
    Spectra Pro Series IP Dome System Quick Start Guide - Turkish
    May 19, 2020Spectra Pro Series IP Dome System Quick Start Guide – Turkish, , media.pelco.com/wp-content/uploads/2020/05/12190932/Spectra-Pro-Series-IP-Dome-System-Quick-Start-Guide-Turkish.pdfturkishquick-start-guides
    Spectra Pro Series IP Dome System Specification Sheets - Arabic
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Arabic, , media.pelco.com/wp-content/uploads/2020/05/12191306/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Arabic.pdfarabicspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Chinese
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Chinese, , media.pelco.com/wp-content/uploads/2020/05/12191311/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Chinese.pdfchinesespecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - German
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – German, , media.pelco.com/wp-content/uploads/2020/05/12191316/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-German.pdfgermanspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Italian
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Italian, , media.pelco.com/wp-content/uploads/2020/05/12191320/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Italian.pdfitalianspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Korean
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Korean, , media.pelco.com/wp-content/uploads/2020/05/12191325/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Korean.pdfkoreanspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Portuguese
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Portuguese, , media.pelco.com/wp-content/uploads/2020/05/12191329/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Portuguese.pdfportuguesespecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Russian
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Russian, , media.pelco.com/wp-content/uploads/2020/05/12191335/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Russian.pdfrussianspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Spanish
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Spanish, , media.pelco.com/wp-content/uploads/2020/05/12191340/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Spanish.pdfspanishspecification-sheets
    Spectra Pro Series IP Dome System Specification Sheets - Turkish
    May 19, 2020Spectra Pro Series IP Dome System Specification Sheets – Turkish, , media.pelco.com/wp-content/uploads/2020/05/12191347/Spectra-Pro-Series-IP-Dome-System-Specification-Sheet-Turkish.pdfturkishspecification-sheets
    Spectra Professional -- Firmware Release Notes v5.10.42
    May 19, 2020Spectra Professional — Firmware Release Notes v5.10.42, , media.pelco.com/wp-content/uploads/2020/05/12191351/Spectra-Professional-Firmware-Release-Notes-v5.10.42.pdfenglishrelease-notes
    Spectra Professional -- Firmware Release Notes v5.10.52 (pdf)
    May 19, 2020Spectra Professional — Firmware Release Notes v5.10.52 (pdf), , media.pelco.com/wp-content/uploads/2020/05/12191351/Spectra-Professional-Firmware-Release-Notes-v5.10.42.pdfenglishrelease-notes
    Spectra Professional Series IP Dome System User Manual -  German
    May 19, 2020Spectra Professional Series IP Dome System User Manual – German, , media.pelco.com/wp-content/uploads/2020/05/12212336/Spectra-Professional-Series-IP-Dome-System-User-Manual-German.pdfgermanuser-manual
    Spectra Professional Series IP Dome System User Manual - Arabic
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Arabic, , media.pelco.com/wp-content/uploads/2020/05/12212258/Spectra-Professional-Series-IP-Dome-System-User-Manual-Arabic.pdfarabicuser-manual
    Spectra Professional Series IP Dome System User Manual - Chinese
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Chinese, , media.pelco.com/wp-content/uploads/2020/05/12212323/Spectra-Professional-Series-IP-Dome-System-User-Manual-Chinese.pdfchineseuser-manual
    Spectra Professional Series IP Dome System User Manual - French
    May 19, 2020Spectra Professional Series IP Dome System User Manual – French, , media.pelco.com/wp-content/uploads/2020/05/12212349/Spectra-Professional-Series-IP-Dome-System-User-Manual-French.pdffrenchuser-manual
    Spectra Professional Series IP Dome System User Manual - Italian
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Italian, , media.pelco.com/wp-content/uploads/2020/05/12212400/Spectra-Professional-Series-IP-Dome-System-User-Manual-Italian.pdfitalianuser-manual
    Spectra Professional Series IP Dome System User Manual - Korean
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Korean, , media.pelco.com/wp-content/uploads/2020/05/12212413/Spectra-Professional-Series-IP-Dome-System-User-Manual-Korean.pdfkoreanuser-manual
    Spectra Professional Series IP Dome System User Manual - Portuguese
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Portuguese, , media.pelco.com/wp-content/uploads/2020/05/12212426/Spectra-Professional-Series-IP-Dome-System-User-Manual-Portuguese.pdfportugueseuser-manual
    Spectra Professional Series IP Dome System User Manual - Russian
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Russian, , media.pelco.com/wp-content/uploads/2020/05/12212440/Spectra-Professional-Series-IP-Dome-System-User-Manual-Russian.pdfrussianuser-manual
    Spectra Professional Series IP Dome System User Manual - Spanish
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Spanish, , media.pelco.com/wp-content/uploads/2020/05/12212511/Spectra-Professional-Series-IP-Dome-System-User-Manual-Spanish.pdfspanishuser-manual
    Spectra Professional Series IP Dome System User Manual - Traditional Chinese
    May 19, 2020Spectra Professional Series IP Dome System User Manual – Traditional Chinese, , media.pelco.com/wp-content/uploads/2020/05/12191710/Spectra-Professional-Series-IP-Dome-System-User-Manual-Traditional-Chinese.pdfchineseuser-manual

    Camera Firmware

    TypeDateTitleVer #AssetProduct CategoryTagsLinkdownload_type_hfilter
    SpectraPro P1220 Firmware Update v5.10.39
    2017/01/05SpectraPro P1220 Firmware Update v5.10.395.10.39, , media.pelco.com/SpectraPro%20P1220%20Firmware%20Update%20v5.10.39.zipfirmware
    Spectra Professional P1220 Firmware v5.10.52
    2018/10/10Spectra Professional P1220 Firmware v5.10.525.10.52, , media.pelco.com/Spectra%20Professional%20-%20P1220%20-%20Firmware%20v5.10.52.zipfirmware
    Spectra Professional P1220 Firmware v5.10.54
    2019/06/12Spectra Professional P1220 Firmware v5.10.545.10.54, , media.pelco.com/Spectra%20Professional%20-%20P1220%20-%20Firmware%20v5.10.54.zipfirmware
    Spectra Professional P1220 Firmware v5.10.42
    2017/08/02Spectra Professional P1220 Firmware v5.10.425.10.42, , , media.pelco.com/Spectra%20Professional%20-%20P1220%20-%20Firmware%20v5.10.42.zipfirmware

    Miss Nothing

    Capture high-speed moving objects in traffic, gaming, banking, and commercial environments. 5MP cameras can stream 60 FPS for up to 4MP resolution.

    Bandwidth & Storage Savings

    Save on bandwidth and storage costs with Pelco Smart Compression technology and h.265, the highest video compression standard.
