Fortified Camera Systems

Fortified Camera Systems

A solution for any condition

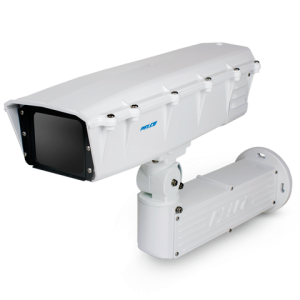

pelco fortified enclosure

OVERVIEW

Pelco Fortified Camera Systems

Cameras are designed to work in ideal conditions. Unfortunately, as we are all too well aware, there is no such thing as “ideal conditions.”

For this reason, Pelco has designed a series of Fortified Cameras that protect your investment – and your bottom line – from anything Mother Nature throws your way.

The Fortified Camera Systems are engineered to the highest standards and flexible enough to work with most cameras, mounting scenarios and power options.

  • Fully integrated enclosures with camera, lens, and
    power supplies
  • Impact resistant for protection from acts of vandalism
  • Integrated wall mount; full line of optional mounting
    brackets for virtually any mounting scenario
  • Ample internal space for IP media conversion and
    additional accessories
  • Active cooling system

CLEAR DETAIL IN LOW LIGHT CONDITIONS

Fortified Series provides protection from heat, cold, moisture, and challenging power environments.

  • Available as fully assembled, tested, and certified camera systems
  • Suitable for both indoor and outdoor applications
  • Easy Installation

Product Types

Fortified Camera Systems


Provides protection from heat, cold, moisture, and challenging power environments.

pelco fortified enclosure

FH-HI/FH-HC Series High Temperature Fortified Camera Systems

HIGH TEMPERATURE

Designed to protect against temperatures as high as 70 °C
(158 °F), the FH-HI Series provide total protection against tough
environments that carry dust, salts, moisture, and insects.

Features
  • Integrated Camera System including Enclosure, Lens, Camera, and Power Supply; all FH Series Camera Systems are Wired, Tested, and Certified
  • Temperature Range from –10° to 70°C (14° to 158°F)
  • Active Cooling System
  • Excessive Temperature Warning
  • IK10 Mechanical Impact Resistance
  • Analog and IP Camera Models with Three Lens Options
  • Input Voltage from 100 to 240 VAC
  • Optional Fiber Optic Media Converter for IP Camera Models
pelco fortified enclosure

FH-LI/FH-LC Series Fortified Camera Systems

LOW TEMPERATURE

The Low-Temperature Series protects sensitive cameras from
damaging cold temperatures while reducing and eliminating
obtrusive external ice buildup in climates down to -60 °C (-75 °F).

Features
  • Integrated Camera System including Enclosure, Lens, Camera, and Power Supply; all FH Series Camera Systems are Wired, Tested, and Certified
  • Temperature Range from –60° to 45°C (–76° to 113°F)
  • Cold Start Protection
  • IK10 Mechanical Impact Resistance
  • Analog and IP Camera Models with Three Lens Options
  • Input Voltage 24 VAC
  • Optional Fiber Optic Media Converter for IP Camera Models
pelco fortified enclosure

FH-MI/FH-MC Series Fortified Camera Systems

HIGH HUMIDITY

The FH-MI series reduces external lens fogging and ensures
that the camera’s view is not compromised when humidity and
temperatures increase.

Features
  • Integrated Camera System including Enclosure, Lens, Camera, and Power Supply; all FH Series Camera Systems are Wired, Tested, and Certified
  • Temperature Range from –20° to 45°C (–4° to 113°F)
  • Active Dehumidifier
  • IK10 Mechanical Impact Resistance
  • Analog and IP Camera Models with Three Lens Options
  • Input Voltage 24 VAC
  • Optional Fiber Optic Media Converter for IP Camera Models
pelco fortified enclosure

FH-SI/FH-SC Series Fortified Camera Systems

SOLAR-POWERED

The FH-SI series is engineered to protect cameras and lenses
installed within normal environmental conditions, when powered by a 12VDC solar electric system. Ideal for installations with power constraints, including those installations using solar power.

Features
  • Integrated Camera System including Enclosure, Lens, and Camera; all FH Series Cameras are Wired, Tested, and Certified
  • Temperature Range from –20° to 45°C (–4° to 113°F)
  • Heating and Cooling System
  • IK10 Mechanical Impact Resistance
  • Analog and IP Camera Models with Three Lens Options
  • Input Power 12 VDC
  • Optional Fiber Optic Media Converter for IP Camera Models

Technical Documents & Software

TypeDateTitleVer #Doc. TypeAssetProduct CategoryTagsLanguageLinkproduct_cat_hfilterdoc_language_hfilterdoc_type_category_hfilterdownload_type_hfilter
Fortified Enclosure Integrated Camera Systems Installation Manual - English
2020/05/06Fortified Enclosure Integrated Camera Systems Installation Manual – English, , media.pelco.com/wp-content/uploads/2020/04/16232741/C3952M-B_Fortified_Housings_Inst_052114.pdfcameras fortified-camera-system specialty-ipenglishinstallation-manual
